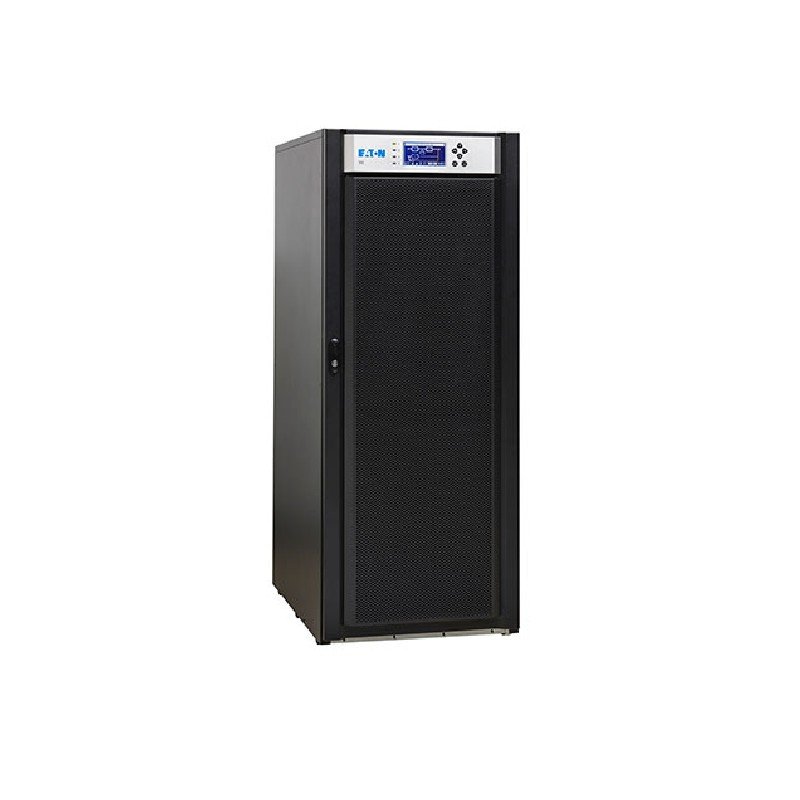

Eaton Smart On-Line UPS Tower, Double Conversion 30KVA IGBT with Micro-Controller - 3 Phase in / Out, 27KW Wattage, Internal Maintenance Bypass Switch 93E 30000I

The Eaton 93E UPS is a three-phase, double-conversion online UPS that helps you address your biggest data center challenges: operating costs, remote management, and unplanned downtime. With internal batteries that provide up to 21 minutes of runtime and a 7 percent higher efficiency rating than competitive units, the 93E UPS maximizes the protection you get for every square foot of floor space and every utility dollar you spend. A detachable maintenance bypass with a mean time to repair of <30 minutes and enhanced management and monitoring capabilities from Brightlayer Data Centers suite increase the reliability of the system and the amount of control you have without even setting foot in the data center.

Lowest total cost of ownership

The 93E is up to seven percent more efficient than other UPSs in its class, helping to keep your operating costs down.

Guarantee zero downtime

Detachable maintenance bypass options allow you to redirect power during UPS service, preventing downtime and reducing repair time and costs.

Maximize runtime with batteries

Get the ability to scale as you grow with up to 21 minutes of runtime from internal batteries and up to 138 minutes of runtime when paired with an External Battery Cabinet (EBC).

Save floor space

The 93E occupies up to 35 percent less floor space than other UPSs in its class, giving you more room for revenue-producing equipment

GENERAL SPECIFICATIONS

• PRODUCT NAME: Eaton 93E UPS
• CATALOG NUMBER: 93E30KMBSBI
• EAN: 3553340693045
• PRODUCT LENGTH/DEPTH: 1 m
• PRODUCT HEIGHT: 1 m
• PRODUCT WIDTH: 0.001 m
• PRODUCT WEIGHT: 156 kg
• COMPLIANCES: CE Marked, RoHS Compliant, CB
• CERTIFICATIONS: IEC/EN 62040-2, IEC/EN 62040-1, EN 62040-3
• Manufactured in a plant certified to ISO 9001 and ISO 14001 management system standards

PRODUCT SPECIFICATIONS

• TYPE: UPS
• AUDIBLE ALARMS: Yes
• AUTO SHUTDOWN FUNCTION: Yes
• INTERNAL BATTERY INCLUDED: Yes
• USER REPLACABLE BATTERIES: No
• BATTERY CHARGER TYPE: ABM technology
• EXTERNAL BATTERY CONNECTION: Hardwired
• COLOR: Black
• CONSTRUCTION TYPE: Free standing model
• EFFICIENCY (ECO-MODE): 98 %
• IMPROVED EFFICIENCY MODE: High Efficiency
• NUMBER OF COMMUNICATION SLOTS: 2
• FEED TYPE: AC
• FORM FACTOR: Tower
• HOT-SWAPPABLE POWER MODULES: No
• INPUT CONNECTION: Fixed connection
• INPUT NOMINAL VOLTAGE: 400V default (380/400/415V)
• NUMBER OF OUTPUT CONNECTIONS FIXED CONNECTION: 1
• OUTPUT FREQUENCY: 50 Hz (50/60 Hz programmable)
• OUTPUT POWER FACTOR: 9
• OVERALL EFFICIENCY: 94 %

PACKAGE CONTENTS

• UPS
• User manual
• Safety instructions

PARALLELABLE
Parallel for capacity and redundancy

• NUMBER OF PARALLEL UNITS: 4
• PHASE (INPUT): 3
• PHASE (OUTPUT): 3
• POTENTIAL FREE SWITCH CONTACT: No
• SNMP: No
• START-ON-BATTERY: No
• TOPOLOGY: Online
• TYPE OF INTERFACE: Other
• INTERNAL MAINTENANCE BYPASS: Yes
• USER INTERFACE (HMI): Graphical LCD
• KVA RATING: 30 kVA
• WATTAGE: 27 kW

APPLICATION
Data center/ facility/IT

• OUTPUT EFFECTIVE POWER: 27000 W
• TRANSITION TIME FOR FULL LOAD: 0 s
• EFFICIENCY (IMPROVED EFFICIENCY MODE): 98 %
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX: 2 %

INTEGRATED FUNCTIONALITY

• Network Management
• INPUT FREQUENCY - MIN: 50 Hz
• INPUT FREQUENCY - MAX: 60 Hz
• INPUT VOLTAGE - MIN: 380 V
• INPUT VOLTAGE - MAX: 415 V
• OUTPUT VOLTAGE - MIN: 380 V
• OUTPUT VOLTAGE - MAX: 415 V
• SECONDARY FREQUENCY MIN: 50 Hz
• SECONDARY FREQUENCY MAX: 60 Hz
• OUTPUT APPARENT POWER: 30000 VA
• PRIMARY FREQUENCY - MAX: 60 Hz
• PRIMARY FREQUENCY - MIN: 50 Hz
• RUNTIME AT HALF LOAD: 19 min
• RUNTIME AT FULL LOAD: 8 min
• MOUNTING METHOD: Tower
