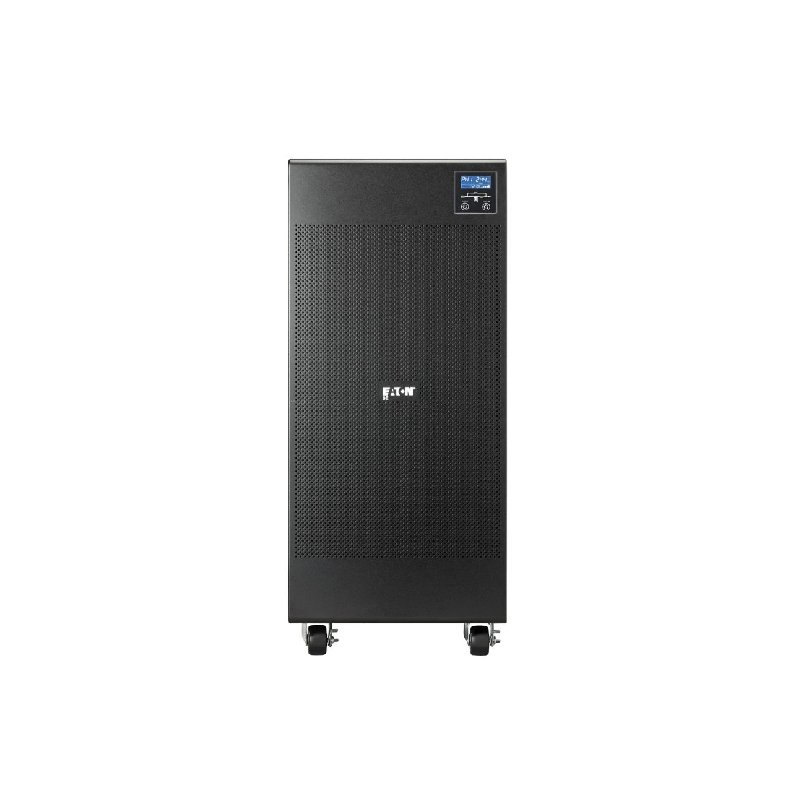

EATON Smart UPS On-Line Double Conversion 20KVA IGBT with Micro-controller, Three Phase In, Single Phase Out 9E20000I

The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS is an ideal choice for industrial, medical, and information technology (IT) applications and telecommunications.

Features:

• Online double conversion topology
• Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
• Provides more real power (watts) to protect more equipment with a 0.8 power factor
• Internal bypass and maintenance bypass are available as standards
• Combo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVA
• XL models with internal superchargers for extra-long runtime
• Communication through USB, RS232 serial, or over the network with an optional network card
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• CE compliance certified by external agency (CB report from the TUV)

Specifications:

General Specifications

• Product Name: Eaton 9E UPS
• Catalog Number: 9e20ki
• UPC: 743172067715
• Product Length/depth: 70.6 Cm
• Product Height: 81.55 Cm
• Product Width: 35 Cm
• Product Weight: 159.83 Kg
• Compliances: CE Marked, TUV
• Certifications: LEC/en 62040-1, IEC/en 62040-2, CE, EAC
• Warranty: 2 Years

Battery

• Battery Type: Sealed, Lead-acid
• Runtime Graph: View Runtime Graph
• Battery Replacement: Replaceable Batteries
• Battery Quantity: 40
• Battery Management: Automatic Battery Test, Deep Discharge Protection
• Battery Rating: 12 V / 9 Ah
• Extended Battery Capability: Yes

Electrical Output

• Voltage: 230/400V
• Wattage: 16 KW
• Output Power Factor: 0.8
• Output Voltage Range: 220/230/240 V +/- 2%
• Output Waveform: Sine Wave
• Output Nominal Voltage: 230v Default (220/230/240v)
• Voltage Distortion Output (Linear Load) - Max: 3
• Feed Type: 1
• Topology: Online/double-conversion
• Va Rating: 20 Kva

Electrical Input

• Input Connection: Hardwired/fixed Connection
• Input Nominal Voltage: 230v Default (220/230/240v)
• Nominal Frequency: 50/60 Hz
• Input Power Factor: >.99
• Input Voltage Range: 176-276 V (110-276 V With Derating)
• Input Frequency Range: 45-66hz

Communications

• Includes Network Card: No
• Communication: USB Port (Hid Compliant), Serial Port (Rs232), Mini-terminal Block for Remote Power Off, Communication Slot
• Ethernet Interface: No
• User Interface: LCD Display
• Potential Free Switch Contact: Yes
• Expansion Slots: One Slot for Optional Communication Card
• Software Compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• Type of Interface: Other

Environmental

• Altitude: 3000 m
• Noise Level: <55 Db at 1 Meter
• Temperature Range: 0° to 40°c (32° to 104°f)
• Relative Humidity: 0-95% Non-condensing

Additional Specifications

• Construction Type: Free-Standing Model
• Package Contents: UPS, USB Cable, Serial Cable, User Manual
• Phase (Output): 1
• Internal Bypass: Yes
• Auto Shutdown Function: Yes
• Color: Black
• Efficiency: 93
• Rack Mounting Kit: No
• Hot Swap Power: No
