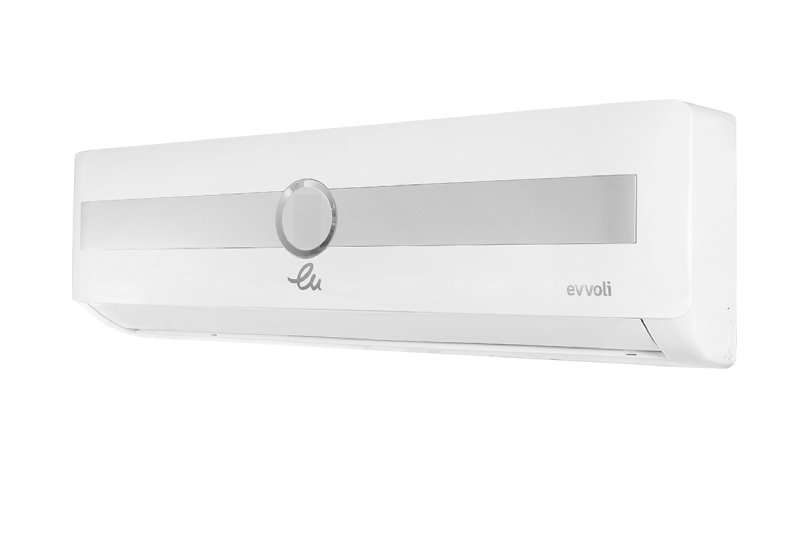

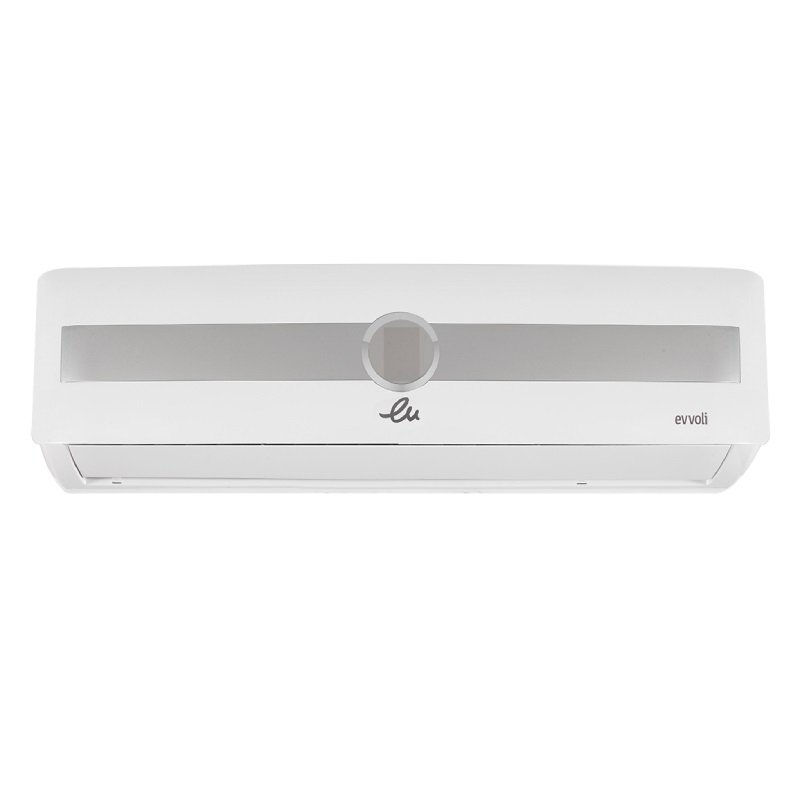

Evvoli Air Conditioner Cooling and Heating 18000BTU Gas R410 with Inverter MD-EVCIS

Basic Information

 Rated Capacity

•   cooling: 18000 Btu
•   Heating: 18500 Btu
•   Power Supply : 220-240V,1Ph,50Hz
•   Max Input Consumption: 2400W
•   Max. Current: 12.0

Specification

• Refrigerant type: R410A/1200g
• Design Pressure: 4.2/1.5 MPa
• Refrigerant Piping: ?6.35/?12.7(1/4"/1/2")mm
• Wiring: 3?1.5 0.75?2 (Optional)
• Plug type: 3?1.5
• Thermostat type: Remote Control
• Indoor Cooling: 17~32/0~30 ?
• Outdoor Cooling: 18~43/-7~24 ?

INDOOR UNIT

INDOOR Fan Unit

• Fan Moto Model: YKFG-28-4-3
• Motor Speed: 1140/950/800r
• Input: 58W
• Capacitor: 1.5uF

Indoor Coil

• Row: 2
• Tube Patch: 21?13.37mm
• Fin Spacing: 1.2mm
• Fin Type: Hydrophilic Aluminum
• Tube Outside: ?7.innergroove tube
• Coil(LXWXH): 750x336x26.74mm
• Number of circuit: 4
• Pipe diameter: ?7?0.24 mm
• Indoor Air Flow(HI/ME/LO): 787/631/509

Indoor Unit

• Dimension(WXHXL): 965x215x319
• Packing: 1045X305X405mm
• Net Weight: 11.6kg
• Gross Weight: 14.8kg

COMPRESSOR

• Compressor Brand: GMCC
• Compressor Model: PA215M2AS-7KTL6
• Type: Rotary
• Capacity: 21325 btu

OUTDOOR UNIT

INDOOR Fan Unit

• Fan Moto Model: YKT-48-6-206
• Motor Speed: 880mm
• Input: 91W
• Capacitor: 2.5uF

Outdoor Coil

• Row: 2
• Tube Patch: 21?13.37
• Fin Spacing: 1.4mm
• Fin Type: Hydrophilic Aluminum
• Tube Outside: ?7,innergroove tube
• Coil(LXWXH): 755x504x26.74
• Number of circuit: 6
• Pipe diameter: ?7?0.24 mm

Outdoor Unit

• Dimension(WXHXL): 770x300x555
• Packing: 900x348x615
• Net Weight: 36.5
• Gross Weight: 39
