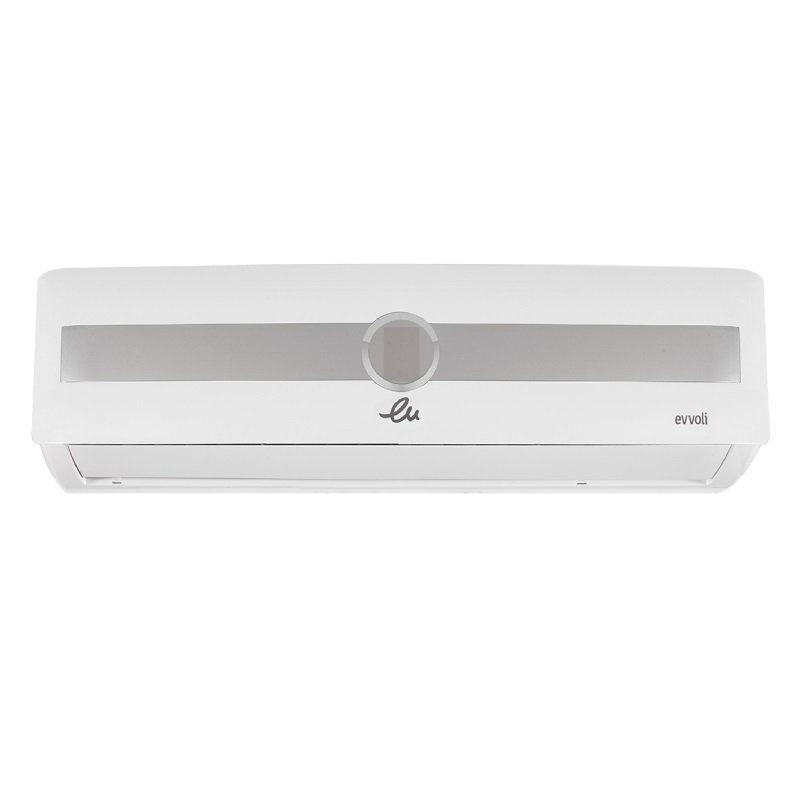

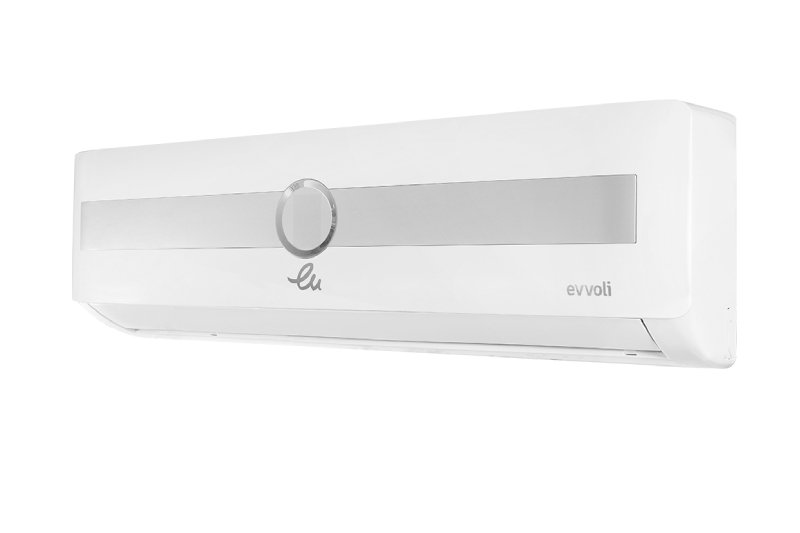

Evvoli Cooling and Heating Air Conditioner Golden 24000BTU Gas R410 MD-EVCIS

Basic Information

 Rated Capacity

•   cooling: 24000 Btu
•   Heating: 26000 Btu
•   Power Supply : 220-240V,1Ph,50Hz
•   Max Input Consumption: 4000W
•   Max. Current: 20.0A

Specification

• Refrigerant type: R410A/1800g
• Design Pressure: 4.2/1.5 MPa
• Refrigerant Piping: ?9.52/?15.9(3/8"/5/8")mm
• Wiring: 4?1.0 (Optional)
• Plug type: 3?2.5
• Thermostat type: Remote Control
• Indoor Cooling: 17~32/0~30 ?
• Outdoor Cooling: 18~43/-7~24 ?

INDOOR UNIT

INDOOR Fan Unit

• Fan Moto Model: YKFG-45-4-22
• Motor Speed: 1120/1020/950
• Input: 77W
• Capacitor: 3uF

Indoor Coil

• Row: 2
• Tube Patch: 21?13.37mm
• Fin Spacing: 1.3mm
• Fin Type: Hydrophilic Aluminum
• Tube Outside: ?7.innergroove tube
• Coil(LXWXH): 820x336x26.74
• Number of circuit: 4
• Pipe diameter: ?7?0.24 mm
• Indoor Air Flow(HI/ME/LO): 1060/947/870

Indoor Unit

• Dimension(WXHXL): 1080x226x335
• Packing: 1155x415x315
• Net Weight: 12.7
• Gross Weight: 16.1

COMPRESSOR

• Compressor Brand: GMCC
• Compressor Model: PA280G2CS-4MTL
• Type: Rotary
• Capacity: 27756
• Capacitor: 60uF
• Input: 1920 btu

OUTDOOR UNIT

INDOOR Fan Unit

• Fan Moto Model: YKT-75-6-200L
• Motor Speed: 860mm
• Input: 144W
• Capacitor: 3uF

Outdoor Coil

• Row: 2
• Tube Patch: 21?13.37
• Fin Spacing: 1.4mm
• Fin Type: Hydrophilic Aluminum
• Tube Outside: ?7,innergroove tube
• Coil(LXWXH): 760x651x26.74
• Number of circuit: 6

Outdoor Unit

• Dimension(WXHXL): 845x363x702
• Packing: 965x395x765
• Net Weight: 49
• Gross Weight: 52
