Description
APFCThe power factor correction panels are designed to improve the power factor in electrical systems while ensuring energy and cost efficiency.

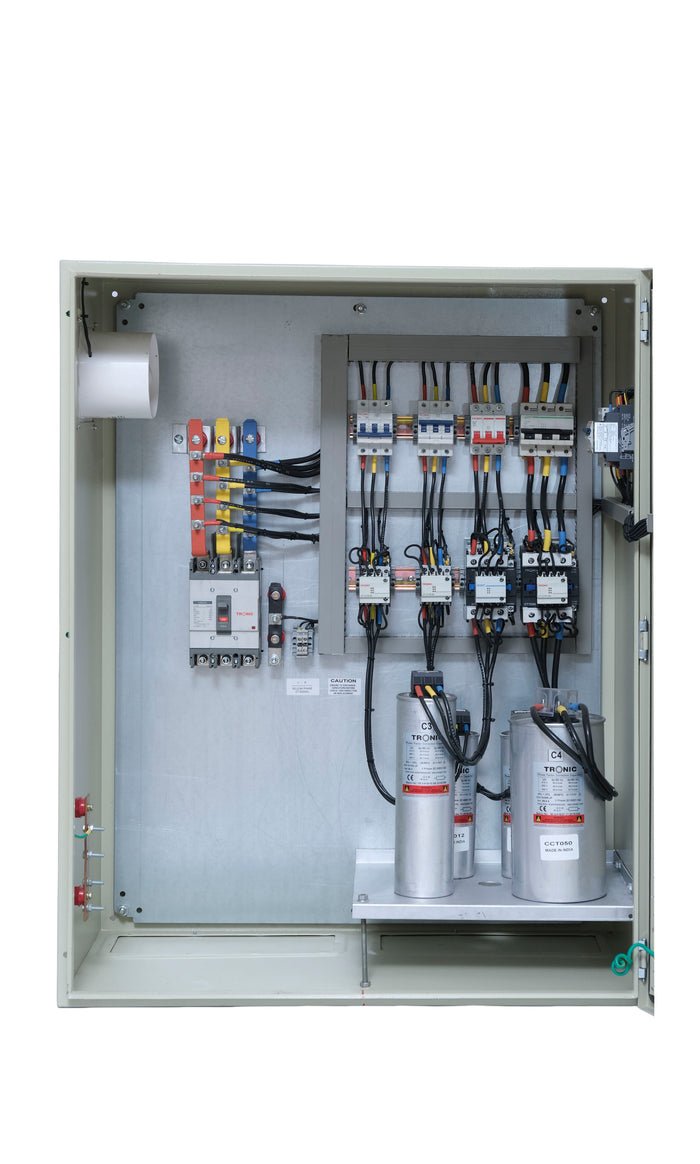

An automatic power factor correction unit have a number of capacitors that are switched by means of contactors. These contactors are controlled by a regulator that measures power factor in an electrical network or individual motors.
100kVAR 4 steps Automatic Power Factor Correction Panel without detuned reactors. This unit provides reactive power to a network, depending on the present load, thereby raising the power factor to acceptable level and thus, reducing the reactive power drawn from the main utilities grid.
| Additional Information |
| Functional components | Capacitors switched by contactors using a microprocessor based intelligent controller based on constant sampling of the present power status of the load network | |
| Rated Reactive Power | 100kVAR | |
| Rated Voltage | 415VAC | |
| Rated Current | 150A | |
| Capacitor Steps | 12.5kVAR | 1st & 2nd steps |
| 25kVAR | 3rd step | |
| 50kVAR | 4th step | |
| Enclosure details | Dimensions | 800mm (length) * 1000mm (height) * 400mm (depth) |
| Mounting | Wall-mounted | |
| Cable entry | Bottom | |
| IP Rating | 55 | |
| Operation Modes | Automatic | |
| Manual | ||

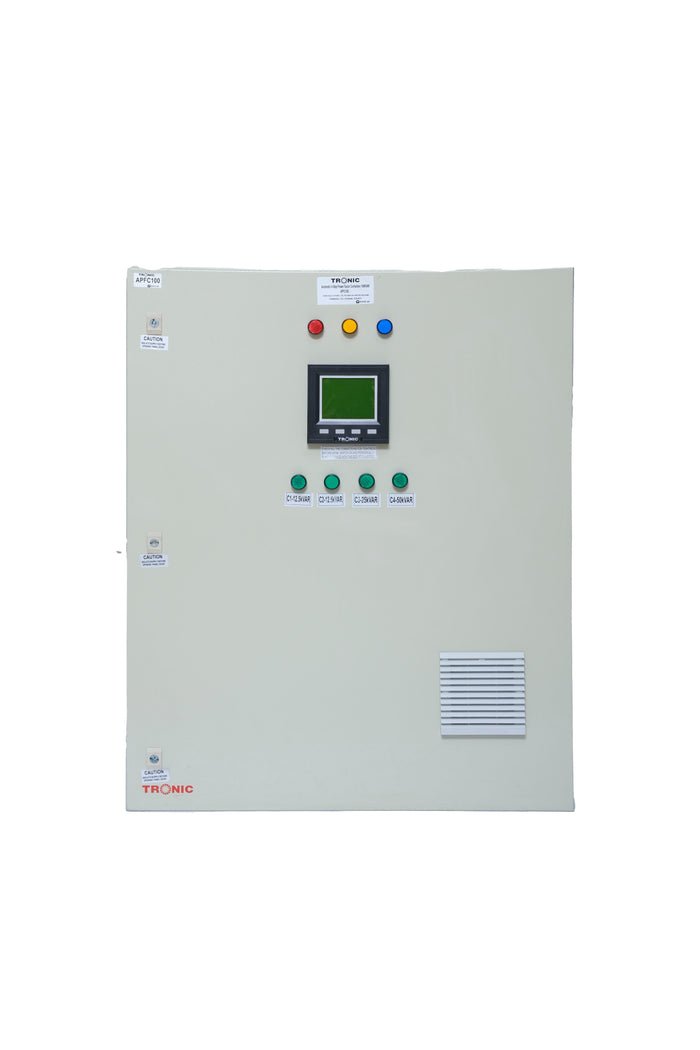

| Pilot lamp indications | Provided on the Panel Door | 3 Phase Supply |
| Capacitor Steps | ||
| Protection Features | Under voltage | -5 to -25% of Supply Voltage |
| Overvoltage | 5 to 25% of Supply Voltage | |
| Asymmetry | 10% fixed | |
| Phase sequence reverse | n/a | |
| Phase loss | n/a | |
| Operating environment | Operating temperature | -20 to 45?C |
| Altitude | <2000m asl | |
| Vibration & Gas | No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insulation | |
We offer such panels in the range:
30kVAR, 45kVAR, 60kVAR, 100kVAR, 150kVAR, 200kVAR, 250kVAR, 300kVAR, 500kVAR, 550kVAR.
We can provide power factor correction panels with leading reactive beyond or even below the range depending on customer requirements. The number of steps required can also be customized depending on the customer specifications.
