Description
TRONIC Automatic Transfer Switch (ATS) controller uses microprocessor as its core which can precisely monitor voltage (loss of main power). The ATS will start functioning in the following circumstances; loss of power, over voltage, under voltage phase.
400A 4 pole automatic transfer switch unit which, in the event of a power outage, will automatically start a generator and transfer the load over to the Generator supply. When the Main supply returns to normal, the ATS will transfer the load back to the Main supply and shut down the generator.
| Additional Information |

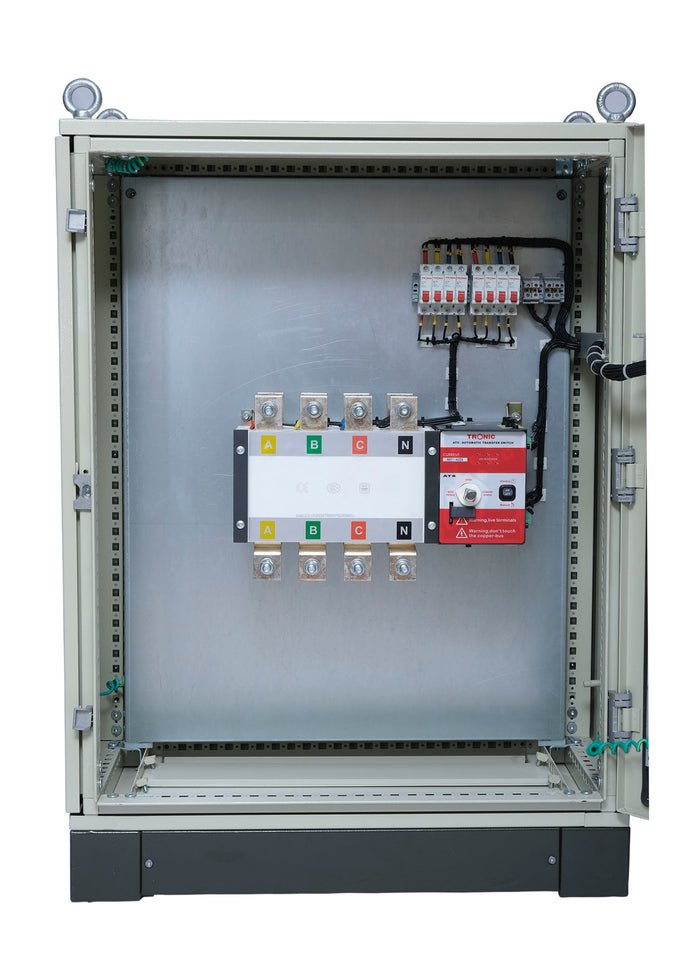

| Functional components | A 4 pole motorised, rotary transfer switch operated by the Tronic Intelligent ATS controller | |
| Enclosure details | Dimensions | 800mm (length) * 1100mm (height) * 400mm (depth) |
| Mounting | Freestanding | |
| Cable entry | Bottom | |
| IP Rating | 55 | |
| Operation Modes | Motorised | Manual using pushbuttons on controller interface |
| Automatic | ||
| Unmotorised | Manual by hand using rotary handle | |

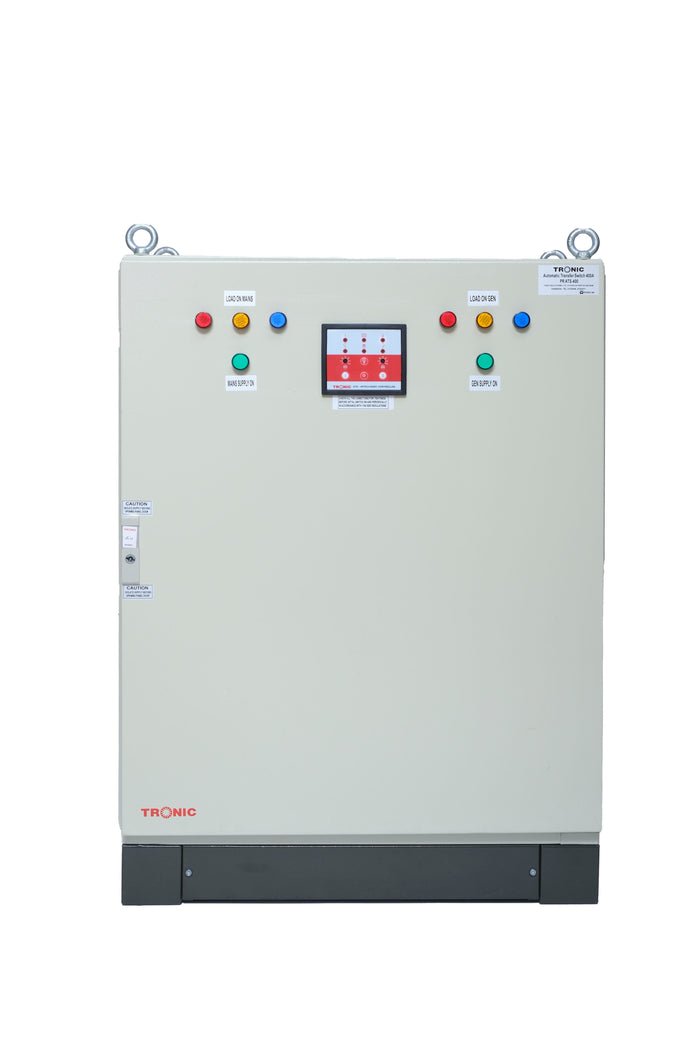

| Pilot lamp indications | Provided on the intelligent controller interface --> | Main Supply available |
| Gen Supply Available | ||
| Load on Main Supply | ||
| Load of Gen Supply | ||
| Auto Operation | ||
| Manual Operation | ||
| Operating environment | Operating temperature | -20 to 45?C |
| Operating humidity | 40% | |
| Altitude | <2000m asl | |
| Vibration & Gas | No strong vibrations and no harmful gases that may corrode the metallic parts and damage the insultation | |
| ATS Controller specifications | AC power supply | 230V?30% (50Hz) |
| DC power supply | 8-35V | |
| Measured Voltage | Line voltage 400V 3 Phase 4 wire | |
| Transfer Switch specifications | Rated Current (In) | 400A |
| Rated insultation voltage of copper bar (Ue) | 660V | |
| Rated impuls withstand voltage (Uimp) | 6kV | |
| Rated operating voltage of copper bar (Ue) | 400VAC | |
| Use category | AC-33A | |
| Rated making capacity | 10Ie | |
| Rated breaking capacity | 10Ie | |
| Rated limit short-circuit current | 35kA | |
| Rated operating voltage of the control power Us | 220VAC | |
