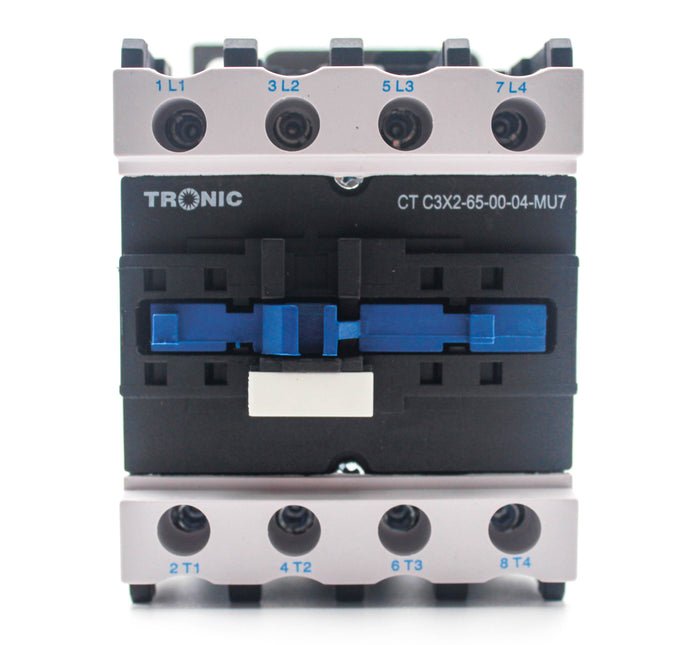

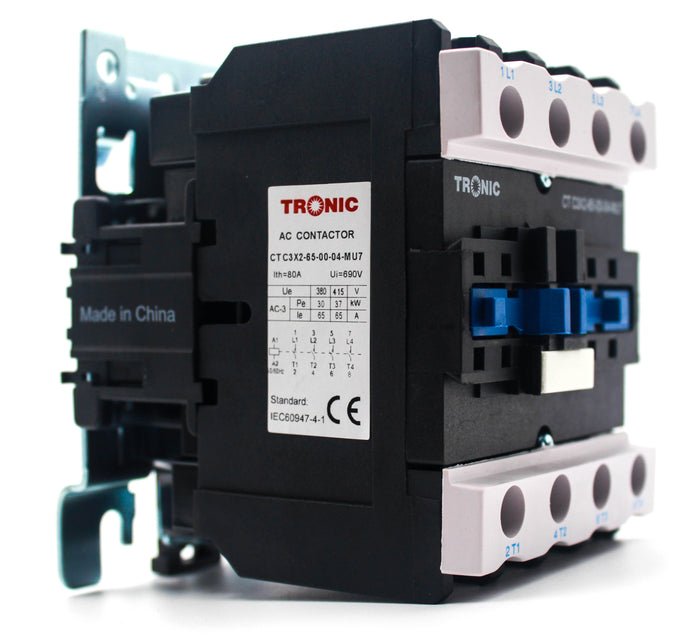

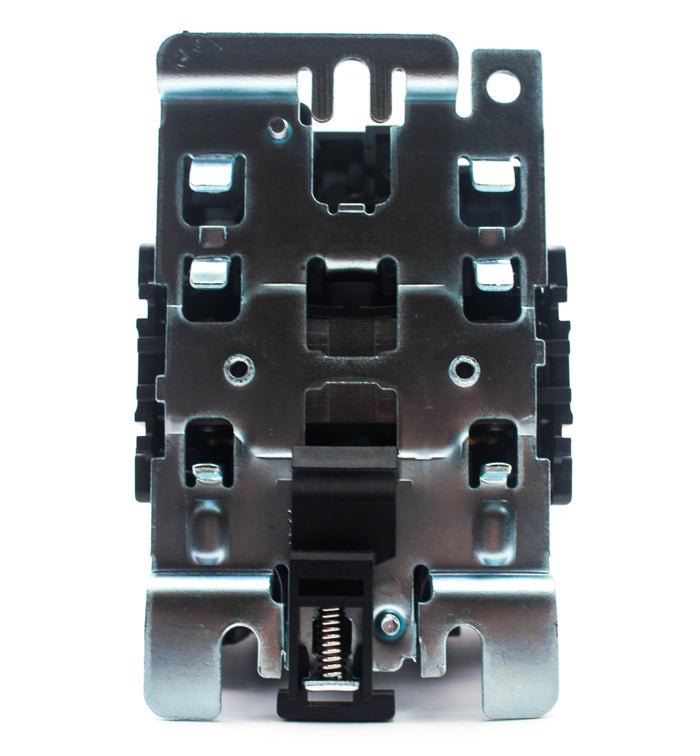

CJ C3X2 AC Contactor is used in AC 50Hz/60Hz circuit with rated insulating voltage of 690V, rated
working voltage of 400V and rated working current from 9A-95A in AC-3 utilization Category.
?It is used to making or breaking the circuit and for frequent start AC motors from a distance.
It can also be used as electro-magnetic starter when matching with thermal relay to protect the
circuit against overload.
?Conform to IEC/EN 60947-1 ,IEC/EN 60947-5-1
Operation and installation conditions
Type
Operation and installation conditions
Installation class
III
Pollution degree
3
Compliant standards
IEC/EN 60947-1, IEC/EN 60947-5-1
Certification mark
CE
Enclosure protection degree
CJ C3X2?32: IP20; CJ C3X2-40-95: IP10;
Ambient temperature
Operation temperature limits: -35'C ~ 70C Normal operation temperature range: -5 C ~ 40 C . The 24-hour average temperature should not exceed 35 C . For use beyond the normal operation temperature range.
Altitude
Not exceeding 2000 m above sea level
Atmospheric conditions
The relative humidity should not exceed 50% at the upper temperature limit of 70 C . A higher relative humidity is allowed at a lower temperature, e g. 90% at 20C - Special precautions should be taken against occasional condensation due to humidity variations
Installation conditions
The angle between the installation surface and the vertical surface should not exceed ?5?.
Additional Information
Main circuit parameter
Technical performance
Contactor model
Rated insulation voltage Ui (V)
690V
Rated impulse withstand voltage Uimp (kV)
8kV
Rated making capacity
Making current: 10x|e (AC-3) or 12x le (ACV)
Rated breaking capacity
Breaking current: 8x|e (AC-3) or 10xle (AC-4)
1.2x106
Electrical life (cycles)
1.2x107
1.2x106
0.8x106
1.2x107
Mechanical life (cycles)
1x107
0.9x107
0.65x107
Main contact
3NO
Matching thermal overload relay
LR2-36
LR2-93
Built-in auxiliary contact
09-32A1 NO or 1NC ; 40-95A 1NO 1NC
Coil control power supply
24,110,220, 230, 240,415V
24,36,48,110,127,220,230,240,380,415V
Control voltage
(70% ~ 120%) Us
(20% ~ 65%) Us
Coil average power (VA)
Start
CJ C3X2-09-18
40-60
CJ C3X2-25-32
50-70
CJ C3X2-40-65
160-120
CJ C3X2-80-95
190-250
Hold
CJ C3X2-09-18
9.5
CJ C3X2-25-32
8-11.4
CJ C3X2-40~65
13-24
CJ C3X2-80-95
17-30
AC
CJ C3X2-09-32
1~3
Heat
CJ C3X2-40~65
4~8
dissipation(W)
CJ C3X2-80-95
6~10
DC
-
