Description

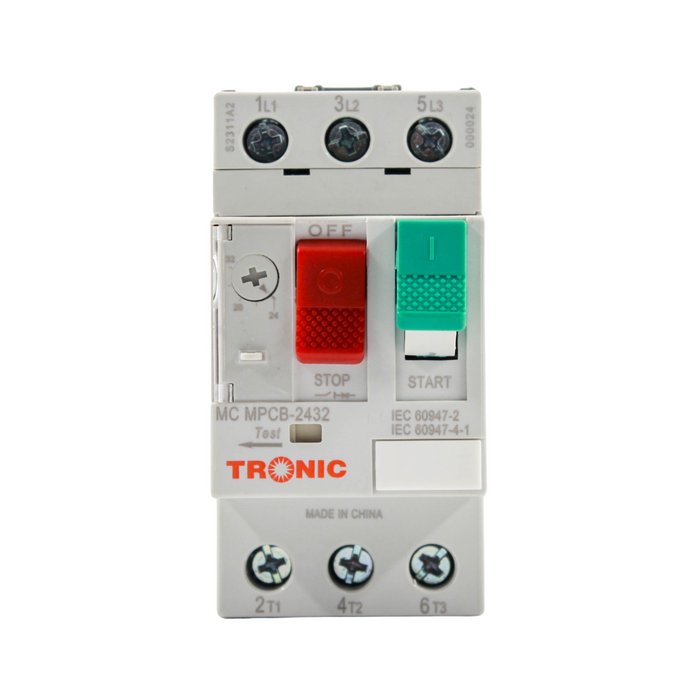

This Motor Protection Circuit Breaker is the ideal solution to protect your electrical motors from overload or short circuit, reaching 24-32A. Its integrated thermal-magnetic release ensures reliable protection and rapid detection, providing maximum safety.
| Standard | IEC60947-2, IEC60947-4-1 |
| Approvals | CE |
| Utilization Category According to IEC60947-2 According to IEC60947-4-1 | A AC-3 |
| Rated insulation voltage Ui(V) | 690 |
| Rated operational voltage Ue(V) 230/240,400/415,440,500,660/690 | |
| Rated impulse withstand voltage Uimp(kA) | 8 |
| Electrical life in AC-3(times) | 10000 |
| Mechanical life(times) | 20000 |
| Tightening torque(N.m) | 1.7 |
| Degree of Protection | IP 20; IP65 with enclosure |
| Ambient air temperature(?C ) | -5 to 40, max. 95% humidity |
| Storage temperature(?C ) | -40~ 70 |
| Maximum operating altitude(meters) | 2000 |
| Type | Current setting range (A) | Instantaneous short-circuit(release(A) | Thermal current Ithe(A) | Standard rated power of thre-phase(kW) | |||
| 230/240 | 400V | 415V | 440V | ||||
| MC MPCB-0610 | 6-10 | 138.0 | 9 | 2.20 | 4.00 | 4.00 | 4.00 |
| MC MPCB-0914 | 9-14 | 170.0 | 13 | 3.00 | 5.50 | 5.50 | 7.50 |
| MC MPCB-1318 | 13-18 | 223.0 | 17 | 4.00 | 7.50 | 9.00 | 9.00 |
| MC MPCB-1723 | 17-23 | 327.0 | 21 | 5.50 | 11.00 | 11.00 | 11.00 |
| MC MPCB-2025 | 20-25 | 327.0 | 23 | 5.50 | 11.00 | 11.00 | 11.00 |
| MC MPCB-2432 | 24-32 | 416.0 | 24 | 7.50 | 15.00 | 15.00 | 15.50 |
Shop online with ease and save big on high quality and cheap Motor Protection Circuit Breaker 24-32Amps and Discover the ease of online shopping in Tanzania with Tausify where you can find premium Electrical products at incredibly low prices. Experience a wide selection of Tronic products. Plus, enjoy the convenience of free delivery on numerous products in Dar es Salaam. Take advantage of the smart online shopping experience and substantial savings only with Tausify Karibu.
